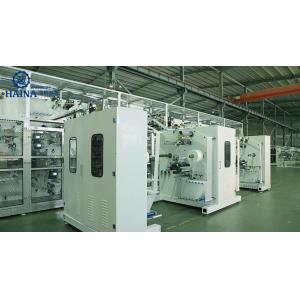

Big Elastic big ear T shape diaper manufacturing machine with stacker
Main technical Parameters
| 1 | Design speed | 500pcs/min |
| 2 | Working speed | 450pcs/min |
| 3 | Qualified rate | ≥ 97% (exclude the wastage due to the glue applicators and materials splicing joint) |
| 4 | efficiency | ≥ 85% |
| 5 | installation capacity | ≥300KW |
| 7 | Electricity | 380V ±5%,50HZ |
| 8 | Wire | Three phases four wires 380V/50Hz (ground wire) 3X120mm³+1X50mm³+1X25mm³ |
| 9 | Air pressure | ≥0.8Mpa 2.6m³/min |
| 10 | Total weight | About 85tons |
| 11 | Machine size | 32×8×5 M(L×W×H) |
| 12 | Working space | 38×12×8 M (L×W×H) |
| 13 | Machine color | Metal beach yellow+ sky blue can be changed by order |
| 14 | Product size | 5size,S,M,L,XL,XXL(according to order) |
| 15 | Containers | 6X40HQ Packaging: PE cover packing in container |
Optional process configurations:
Two fluff forming units
Aloe/perfume application unit
Gravimetric SAP dosing unit
Full servo auto stacker
Camera quality detection unit
Our workshop
